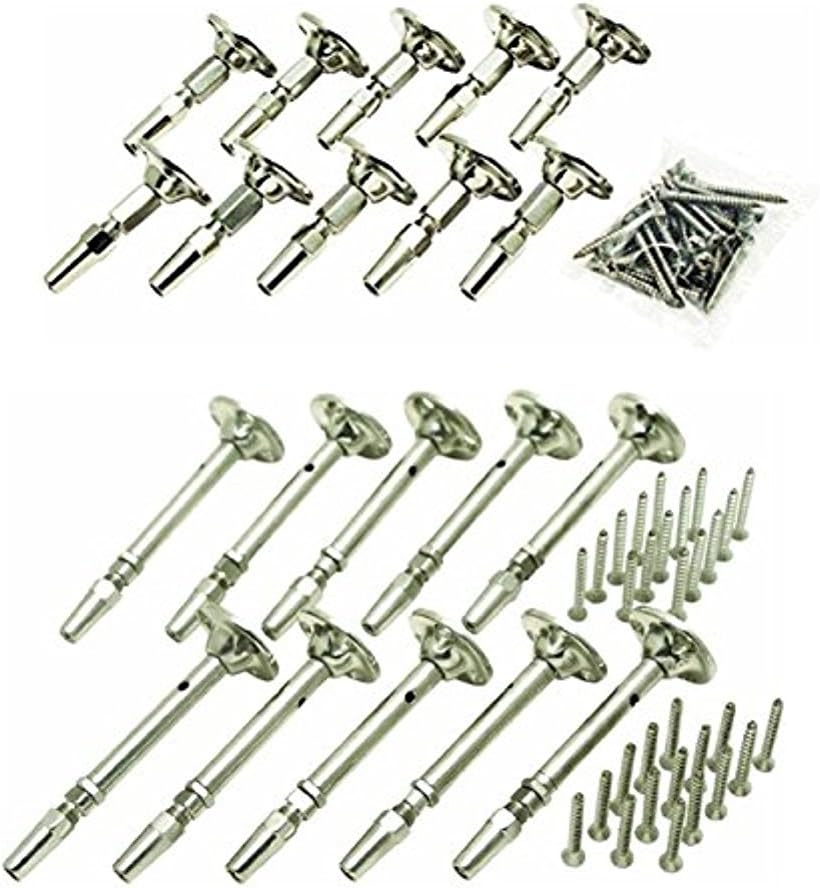

Swivel Terminating End and Cable Tensioner 10 Pack U5174
Swivel Terminating End and Cable Tensioner 10 Pack U5174
For cable railing applications
Use one tensioner per each cable run
316L Stainless Steel
a 36'H rail requires 10 tensioners and a 42'H rail requires 12 tensioners.
Compatible with existing or new wood posts,

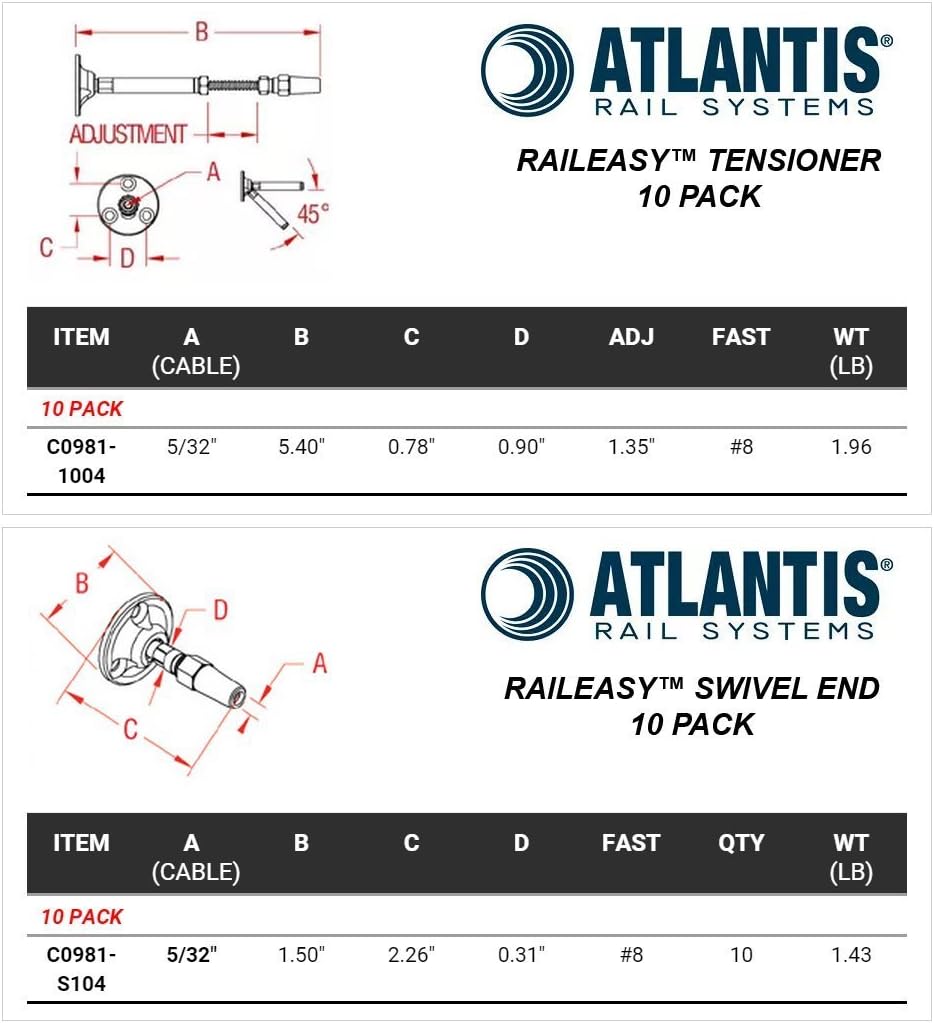

The RailEasy Swivel End is used for cable railing applications. This swivel end is used in conjunction with a RailEasy Tensioner in order to tension cable. The slotted base allows for angles up to 45 degrees and is surface mounted with three #8, 1-1/2” stainless steel screws. The RailEasy Tensioner is the primary cable railing tensioning/fastening device. The compression fitting allows for installation and tensioning by using simple hand tools. It features a slotted base to achieve angles up to 45 degrees, making it perfect for stair applications. The Patented tensioner is used for cable railing applications. The slotted base allows for angles up to 45 degrees and is used at either end of cable runs. The flat base can be fixed on any level surface at any orientation and stays fixed while allowing the body to rotate during tensioning of cable.
